2d convolution using python and numpy

I am trying to perform a 2d convolution in python using numpy

I have a 2d array as follows with kernel H_r for the rows and H_c for the columns

data = np.zeros((nr, nc), dtype=np.float32) #fill array with some data here then convolve for r in range(nr): data[r,:] = np.convolve(data[r,:], H_r, 'same') for c in range(nc): data[:,c] = np.convolve(data[:,c], H_c, 'same') data = data.astype(np.uint8);

It does not produce the output that I was expecting, does this code look OK, I think the problem is with the casting from float32 to 8bit. Whats the best way to do this

Thanks

8 Answers

Maybe it is not the most optimized solution, but this is an implementation I used before with numpy library for Python:

def convolution2d(image, kernel, bias): m, n = kernel.shape if (m == n): y, x = image.shape y = y - m + 1 x = x - m + 1 new_image = np.zeros((y,x)) for i in range(y): for j in range(x): new_image[i][j] = np.sum(image[i:i+m, j:j+m]*kernel) + bias return new_image

I hope this code helps other guys with the same doubt.

Regards.

Edit [Jan 2019]

@Tashus comment bellow is correct, and @dudemeister's answer is thus probably more on the mark. The function he suggested is also more efficient, by avoiding a direct 2D convolution and the number of operations that would entail.

Possible Problem

I believe you are doing two 1d convolutions, the first per columns and the second per rows, and replacing the results from the first with the results of the second.

Notice that numpy.convolve with the 'same' argument returns an array of equal shape to the largest one provided, so when you make the first convolution you already populated the entire data array.

One good way to visualize your arrays during these steps is to use Hinton diagrams, so you can check which elements already have a value.

Possible Solution

You can try to add the results of the two convolutions (use data[:,c] += .. instead of data[:,c] = on the second for loop), if your convolution matrix is the result of using the one dimensional H_r and H_c matrices like so:

Another way to do that would be to use scipy.signal.convolve2d with a 2d convolution array, which is probably what you wanted to do in the first place.

Since you already have your kernel separated you should simply use the sepfir2d function from scipy:

from scipy.signal import sepfir2d convolved = sepfir2d(data, H_r, H_c)

On the other hand, the code you have there looks all right ...

It might not be the most optimized solution either, but it is approximately ten times faster than the one proposed by @omotto and it only uses basic numpy function (as reshape, expand_dims, tile...) and no 'for' loops:

def gen_idx_conv1d(in_size, ker_size): """ Generates a list of indices. This indices correspond to the indices of a 1D input tensor on which we would like to apply a 1D convolution. For instance, with a 1D input array of size 5 and a kernel of size 3, the 1D convolution product will successively looks at elements of indices [0,1,2], [1,2,3] and [2,3,4] in the input array. In this case, the function idx_conv1d(5,3) outputs the following array: array([0,1,2,1,2,3,2,3,4]). args: in_size: (type: int) size of the input 1d array. ker_size: (type: int) kernel size. return: idx_list: (type: np.array) list of the successive indices of the 1D input array access to the 1D convolution algorithm. example: >>> gen_idx_conv1d(in_size=5, ker_size=3) array([0, 1, 2, 1, 2, 3, 2, 3, 4]) """ f = lambda dim1, dim2, axis: np.reshape(np.tile(np.expand_dims(np.arange(dim1),axis),dim2),-1) out_size = in_size-ker_size+1 return f(ker_size, out_size, 0)+f(out_size, ker_size, 1) def repeat_idx_2d(idx_list, nbof_rep, axis): """ Repeats an array of indices (idx_list) a number of time (nbof_rep) "along" an axis (axis). This function helps to browse through a 2d array of size (len(idx_list),nbof_rep). args: idx_list: (type: np.array or list) a 1D array of indices. nbof_rep: (type: int) number of repetition. axis: (type: int) axis "along" which the repetition will be applied. return idx_list: (type: np.array) a 1D array of indices of size len(idx_list)*nbof_rep. example: >>> a = np.array([0, 1, 2]) >>> repeat_idx_2d(a, 3, 0) # repeats array 'a' 3 times along 'axis' 0 array([0, 0, 0, 1, 1, 1, 2, 2, 2]) >>> repeat_idx_2d(a, 3, 1) # repeats array 'a' 3 times along 'axis' 1 array([0, 1, 2, 0, 1, 2, 0, 1, 2]) >>> b = np.reshape(np.arange(3*4), (3,4)) >>> b[repeat_idx_2d(np.arange(3), 4, 0), repeat_idx_2d(np.arange(4), 3, 1)] array([0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11]) """ assert axis in [0,1], "Axis should be equal to 0 or 1." tile_axis = (nbof_rep,1) if axis else (1,nbof_rep) return np.reshape(np.tile(np.expand_dims(idx_list, 1),tile_axis),-1) def conv2d(im, ker): """ Performs a 'valid' 2D convolution on an image. The input image may be a 2D or a 3D array. The output image first two dimensions will be reduced depending on the convolution size. The kernel may be a 2D or 3D array. If 2D, it will be applied on every channel of the input image. If 3D, its last dimension must match the image one. args: im: (type: np.array) image (2D or 3D). ker: (type: np.array) convolution kernel (2D or 3D). returns: im: (type: np.array) convolved image. example: >>> im = np.reshape(np.arange(10*10*3),(10,10,3))/(10*10*3) # 3D image >>> ker = np.array([[0,1,0],[-1,0,1],[0,-1,0]]) # 2D kernel >>> conv2d(im, ker) # 3D array of shape (8,8,3) """ if len(im.shape)==2: # if the image is a 2D array, it is reshaped by expanding the last dimension im = np.expand_dims(im,-1) im_x, im_y, im_w = im.shape if len(ker.shape)==2: # if the kernel is a 2D array, it is reshaped so it will be applied to all of the image channels ker = np.tile(np.expand_dims(ker,-1),[1,1,im_w]) # the same kernel will be applied to all of the channels assert ker.shape[-1]==im.shape[-1], "Kernel and image last dimension must match." ker_x = ker.shape[0] ker_y = ker.shape[1] # shape of the output image out_x = im_x - ker_x + 1 out_y = im_y - ker_y + 1 # reshapes the image to (out_x, ker_x, out_y, ker_y, im_w) idx_list_x = gen_idx_conv1d(im_x, ker_x) # computes the indices of a 1D conv (cf. idx_conv1d doc) idx_list_y = gen_idx_conv1d(im_y, ker_y) idx_reshaped_x = repeat_idx_2d(idx_list_x, len(idx_list_y), 0) # repeats the previous indices to be used in 2D (cf. repeat_idx_2d doc) idx_reshaped_y = repeat_idx_2d(idx_list_y, len(idx_list_x), 1) im_reshaped = np.reshape(im[idx_reshaped_x, idx_reshaped_y, :], [out_x, ker_x, out_y, ker_y, im_w]) # reshapes # reshapes the 2D kernel ker = np.reshape(ker,[1, ker_x, 1, ker_y, im_w]) # applies the kernel to the image and reduces the dimension back to the one of original input image return np.squeeze(np.sum(im_reshaped*ker, axis=(1,3)))

I tried to add a lot of comments to explain the method but the global idea is to reshape the 3D input image to a 5D one of shape (output_image_height, kernel_height, output_image_width, kernel_width, output_image_channel) and then to apply the kernel directly using the basic array multiplication. Of course, this methods is then using more memory (during the execution the size of the image is thus multiply by kernel_height*kernel_width) but it is faster.

To do this reshape step, I 'over-used' the indexing methods of numpy arrays, especially, the possibility of giving a numpy array as indices into a numpy array.

This methods could also be used to re-code the 2D convolution product in Pytorch or Tensorflow using the base math functions but I have no doubt in saying that it will be slower than the existing nn.conv2d operator...

I really enjoyed coding this method by only using the numpy basic tools.

I checked out many implementations and found none for my purpose, which should be really simple. So here is a dead-simple implementation with for loop

def convolution2d(image, kernel, stride, padding): image = np.pad(image, [(padding, padding), (padding, padding)], mode='constant', constant_values=0) kernel_height, kernel_width = kernel.shape padded_height, padded_width = image.shape output_height = (padded_height - kernel_height) // stride + 1 output_width = (padded_width - kernel_width) // stride + 1 new_image = np.zeros((output_height, output_width)).astype(np.float32) for y in range(0, output_height): for x in range(0, output_width): new_image[y][x] = np.sum(image[y * stride:y * stride + kernel_height, x * stride:x * stride + kernel_width] * kernel).astype(np.float32) return new_image

Try to first round and then cast to uint8:

data = data.round().astype(np.uint8);

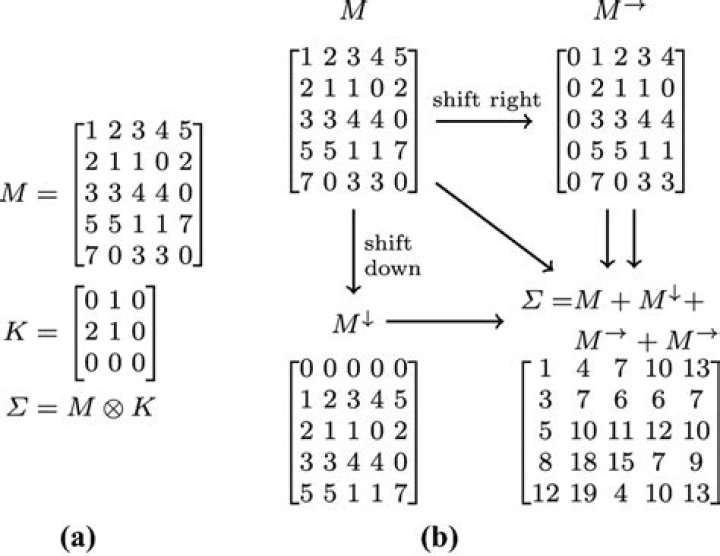

One of the most obvious is to hard code the kernel.

img = img.convert('L') a = np.array(img) out = np.zeros([a.shape[0]-2, a.shape[1]-2], dtype='float') out += a[:-2, :-2] out += a[1:-1, :-2] out += a[2:, :-2] out += a[:-2, 1:-1] out += a[1:-1,1:-1] out += a[2:, 1:-1] out += a[:-2, 2:] out += a[1:-1, 2:] out += a[2:, 2:] out /= 9.0 out = out.astype('uint8') img = Image.fromarray(out)

This example does a box blur 3x3 completely unrolled. You can multiply the values where you have a different value and divide them by a different amount. But, if you honestly want the quickest and dirtiest method this is it. I think it beats Guillaume Mougeot's method by a factor of like 5. His method beating the others by a factor of 10.

It may lose a few steps if you're doing something like a gaussian blur. and need to multiply some stuff.

This code incorrect:

for r in range(nr): data[r,:] = np.convolve(data[r,:], H_r, 'same') for c in range(nc): data[:,c] = np.convolve(data[:,c], H_c, 'same')

See Nussbaumer transformation from multidimentional convolution to one dimentional.
